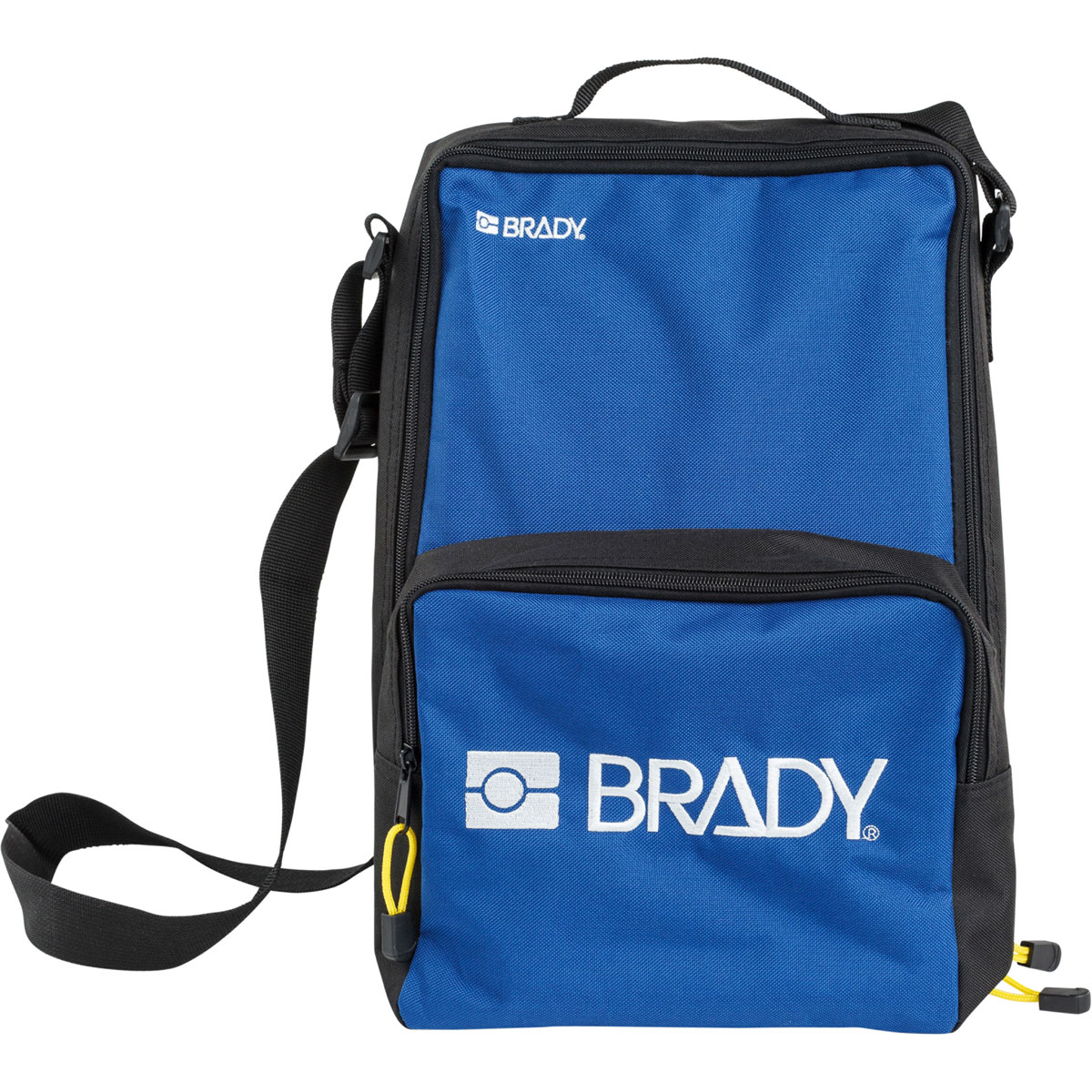

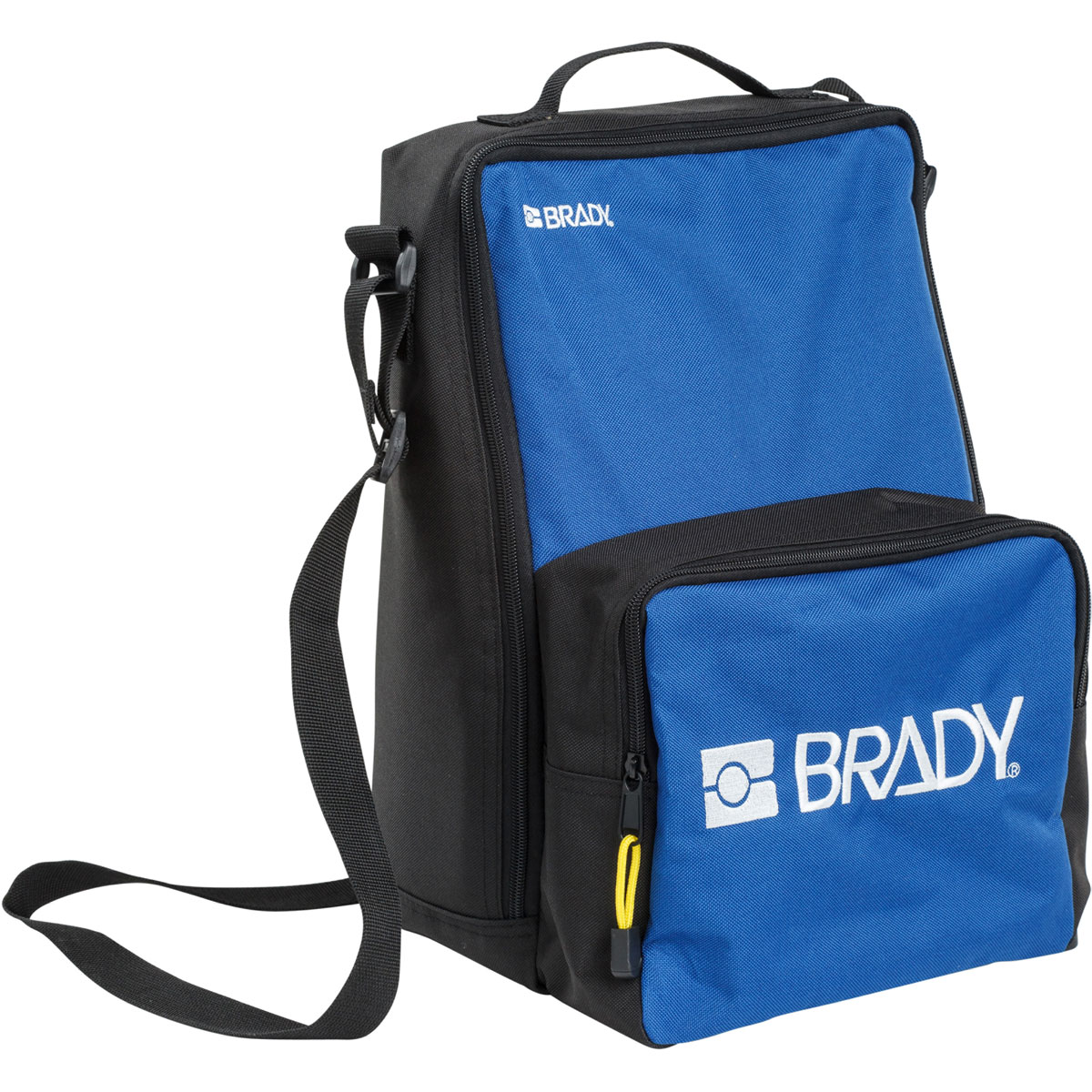

BMP71 Label Printer with Soft Case and Quick Charger
Description
Specifications
Key Characteristics
| Key Characteristics |
Catalog Page #
|
152 |
| Product Number | 115162 | |
| UPC | 662820801870 | |
| UOM | Kit | |
| Trade Name | BMP®71 | |
| Brand Name | Brady® |
Dimensions
| Dimensions | Dimensions | 13 in H x 9.5 in W x 4.6 in D |
| Height | 13 in | |
| Width | 9.5 in | |
| Depth | 4.6 in | |
| Display Size | 3.5 in | |
| Weight | 5.42 lb |
Material Characteristics
| Material Characteristics | Color | Blue |
Product Features
| Product Features |
Application
|
Barcode Labeling, Circuit Board Labeling, Facility Identification, General Identification, Healthcare and Hospital Labeling, Laboratory Labeling, Wire and Cable Labeling |
| Shipped With Battery | Yes | |
| Battery mAh Rating | 1800 mAh | |
| Battery Weight | 0.75 lb | |
| Built-In Label Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap | |
|
Connectivity Options
|
USB | |
| Cutter Type | Between labels or at end of print job, Single Hand Manual Actuate, Straight Cut | |
|
Device Connectivity
|
PC connected & Stand-alone | |
| Device Drop Test & Durability | Resistant to 4-foot drops | |
| Display Type | Color LCD Screen | |
| Keyboard Type | QWERTY | |
| Memory | 200 MB (stores up to 100,000 labels) | |
| Number of Symbols | 500+ | |
| On Screen Indicators | Battery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining | |
| Plug Type | US | |
| Power Supply Voltage | 110 – 245 V | |
| Auto Shut-Off / Power Conserve | 10 minutes, User Configurable | |
|
Recharge Time
|
4 hours | |
| Special Characters Quantity | Depends on Regional Keypad | |
| User Interface Type | Full QWERTY Keyboard | |
| Battery Type | Rechargeable NiMH Battery |
Printing Specifications
| Printing Specifications | Barcode Symbologies – 2D | More through Brady Workstation |
| Barcode Symbologies – Linear | Code 128, Code 39, More through Brady WorkStation | |
|
Calibration Required?
|
Automated through Smart Cell | |
| Color Printing Capability | Single Color | |
| Font Sizes | 4 – 174 pt | |
| Font Styles | Arial Alternative Monospaced, Swiss 721 | |
|
Label Retention Feature
|
No | |
|
Maximum Labels per Day
|
1000 | |
|
Maximum Label/Tape Width
|
2 in | |
| Maximum Print Speed | 1.5 in/s | |
|
Minimum Label Length
|
0.236 in | |
| Maximum Printed Label Length | 40 in | |
| Print Resolution | 300 dpi | |
| Print Technology | Thermal Transfer |
Compatibility
| Compatibility |
Compatible Media
|
BM71-, BM71C-, BM71E-, BM71H-, M71-, M71C-, M71D-, M71EP-, M71FP-, M71FT-, PTL-, PTLEP- |
| Label Material Types | FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metal-detectable Polyester, Metallized Polyester, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyethylene, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth | |
| Materials Supported | Continuous, Die-cut | |
| Custom Labels Available | Yes | |
| Maximum Print Width | 2 in | |
| Software Compatibility | Brady Workstation | |
| Languages Available | English (US), French (France), Portuguese (Portugal), Spanish (Spain) |
What’s Included
| What’s Included | Includes | (1) AC Adapter/Battery Charger (M-AC-143110), (1) BMP®71 Printer (BMP71), (1) Drivers CD, (1) Free Brady WorkStation Basic Design Suite Download, (1) Glossy White Polyester Asset and Equipment Tracking Labels (M71-31-423), (1) Halogen Free Printer Ribbon (M71-R6000), (1) Hard Case (M71-HC), (1) Media Adapter (M71-ADAPT-BK), (1) Quick Charger (M71-QC), (1) QuickStart Guide, (1) Rechargeable Battery (M71-BATT), (1) Soft Case (BMP-SC-3), (1) Tutorial and 2 Year Limited Warranty, (1) USB Cable (M-USB-103788), (1) Users Guide |
| Model | BMP71 | |
| Warranty | 2 Years |
Compliance
| Compliance |
California Prop 65
|
Due to inconclusive data, this product may not ship to California at this time |
| REACH SVHC Status | Please contact our CS department for more information | |
| REACH Candidate List Date | Please contact our CS department for more information | |
|
Country of Origin
|
Malaysia | |
|
ECCN (Export Commodity Control Number)
|
EAR99 | |
|
HTS Code (Harmonized Tariff Schedule)
|
8443.32.1050 | |
| Patent Number(s) | 5918989, 5951177, 6929415, 7893951, 7999836, 8328442, 8333524, US D635183 | |
| RoHS Compliance Status | Please contact our CS department for more information | |
|
UNSPSC
|
45101520 |
