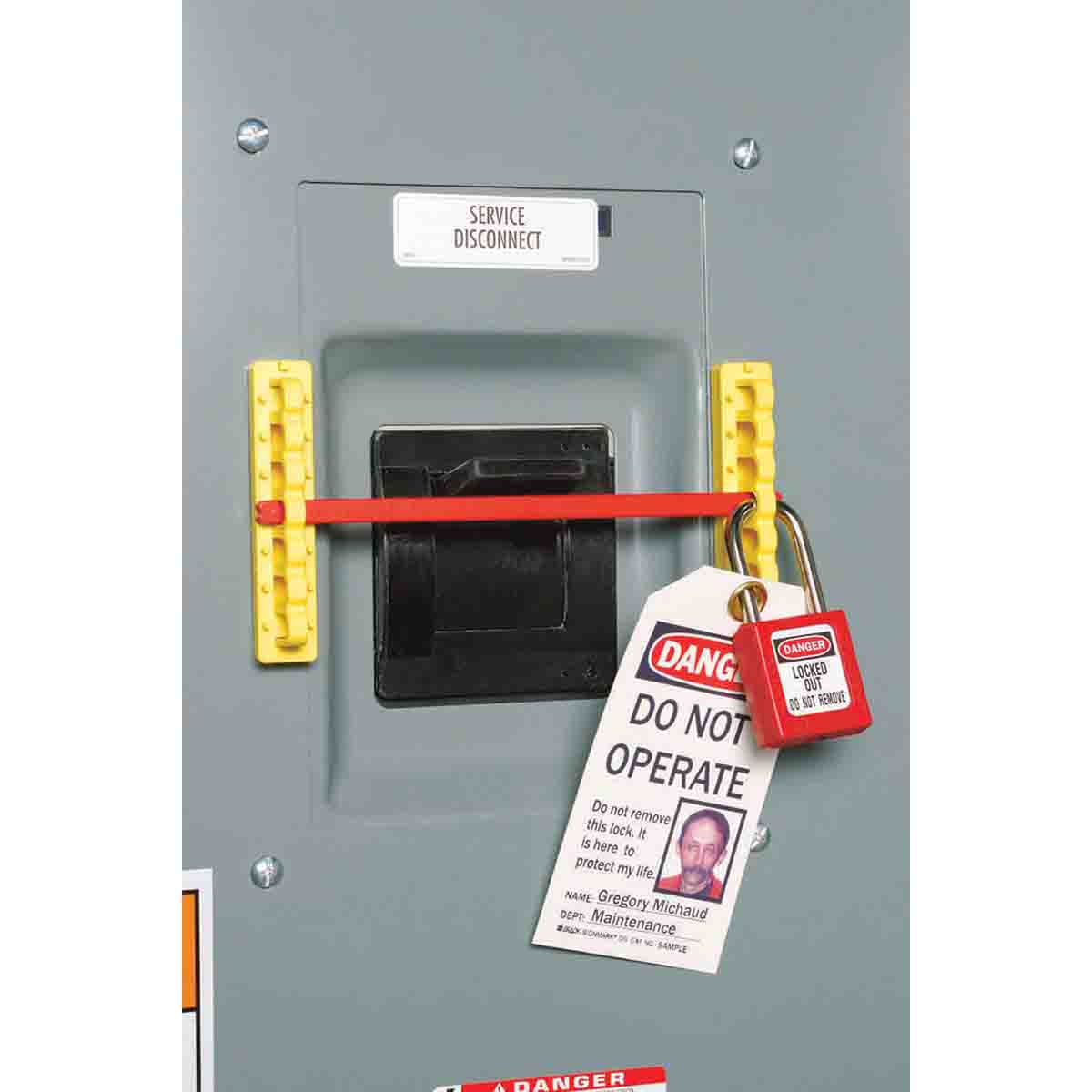

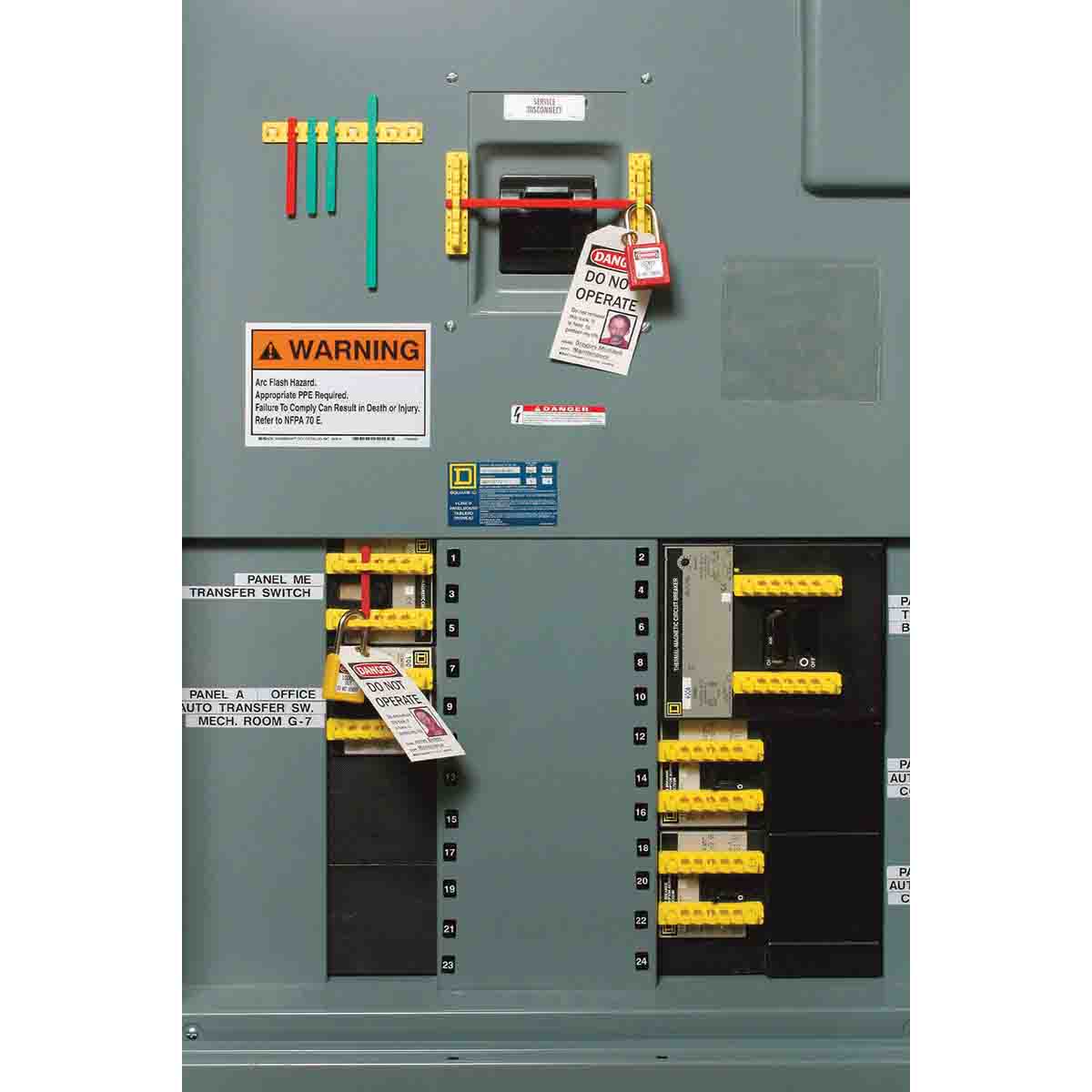

480 600 Volt Breaker Blocker Kit
Description
Specifications
Key Characteristics
| Key Characteristics |
Catalog Page #
|
77 |
| Product Number | 090891 | |
| UPC | 662820050230 | |
| UOM | Kit | |
| Trade Name | Breaker Blocker | |
| Brand Name | Brady® |
Dimensions
| Dimensions | Dimensions | 0.8 in H x 4 in W x 0.7 in D |
| Height | 0.8 in | |
| Width | 4 in | |
| Depth | 0.7 in |
Material Characteristics
| Material Characteristics |
Material Number
|
LOTO-44 (View Technical Data Sheet) |
|
Material
|
Glass-Reinforced Nylon | |
| Adhesive Type | Permanent Acrylic | |
| Color | Red, Yellow, Blue, Green |
Product Features
| Product Features |
Application
|
Lockout Tagout |
|
Maximum Number of Padlocks
|
7 | |
|
Risk Type
|
Electrical Risk | |
| Wall-Mountable? | Yes |
Compatibility
| Compatibility | Maximum Shackle Diameter | 0.26 in |
| Maximum Switch Width | 5.91 in | |
| For Use With | Circuit Breakers |
What’s Included
| What’s Included | Includes | (1) Green Blocking Bar, 7.6″, (1) Red Blocking Bar, 7.6″, (2) Yellow Mounting Rails, 4″, (3) Alcohol Wipes |
| Device Types in Kit | Electrical Risk Lockouts |
Compliance
| Compliance |
California Prop 65
|
No warning label required |
| REACH SVHC Status | Part does not contain an SVHC | |
| REACH Candidate List Date | 25 June 2025 | |
|
Country of Origin
|
China | |
|
ECCN (Export Commodity Control Number)
|
EAR99 | |
|
HTS Code (Harmonized Tariff Schedule)
|
3926.90.9989 | |
|
National Stock Number (NSN)
|
5999015864315 | |
| RoHS Compliance Status | Not applicable to this product | |
|
UNSPSC
|
39121901 |
