3″ Core PermaSleeve Low Smoke Zero Halogen 20 to 16 Gauge Wire Marking Sleeves
Description
Specifications
Key Characteristics
| Key Characteristics |
Catalog Page #
|
206 |
|
Product Number |
146059 |
|
|
UPC |
754473549299 |
|
|
UOM |
Roll of 5000 Each |
|
|
Quantity per Roll |
5000 |
|
|
Unit Price |
$0.35/Sleeve |
|
|
Trade Name |
PermaSleeve® |
|
|
Brand Name |
Brady® |

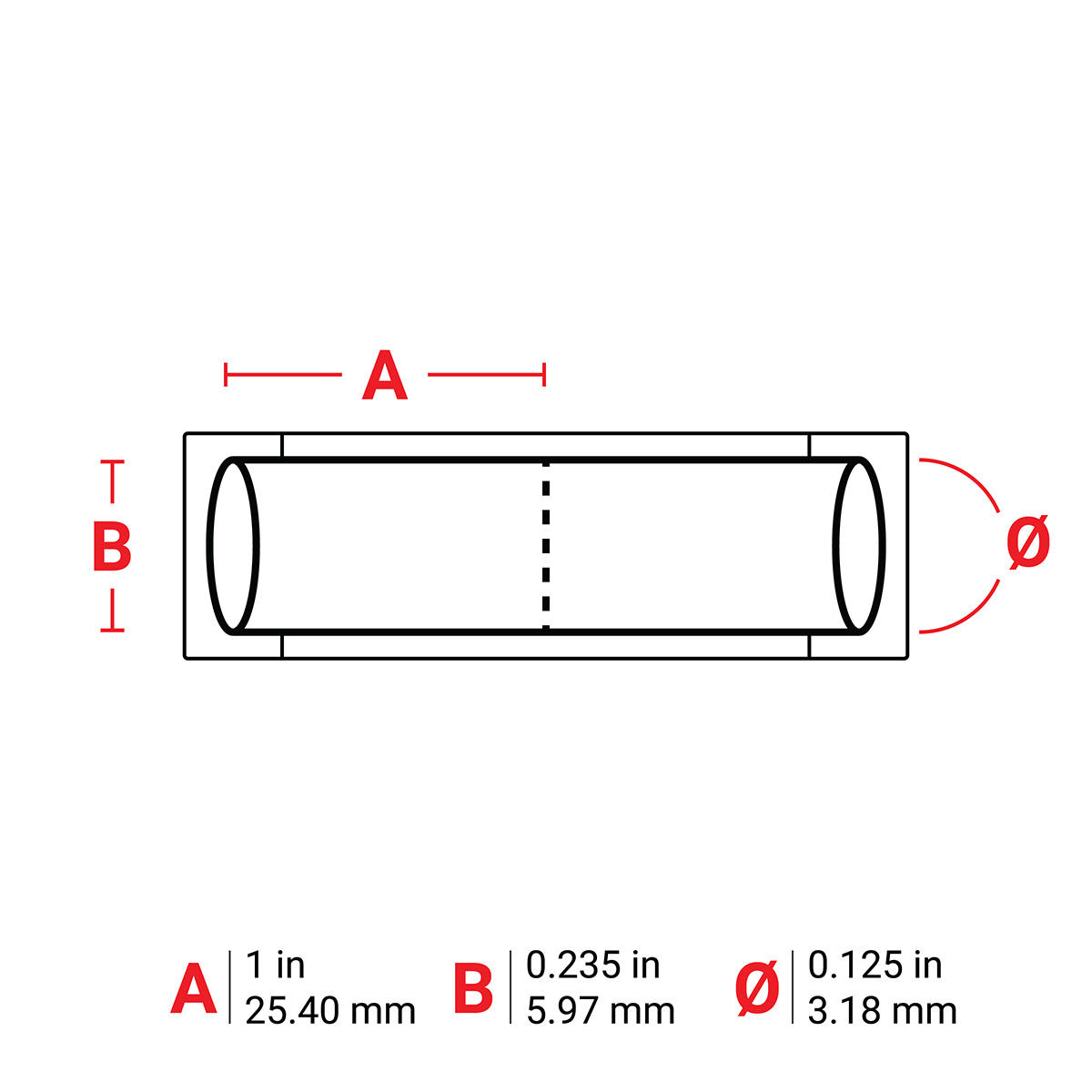

Dimensions
| Dimensions |
Dimensions |
0.235 in H x 1 in W |
|
Height |
0.235 in |
|
|
Width |
1 in |
|
|
Sleeve Size |
0.125 in Dia x 1 in W |
|
|
Vertical Repeat |
0.5 in |
|
|
Recovered Diameter |
0.062 in |
|
|
Recovered Wall Thickness |
0.025 in |
|
|
Web Width |
3.49 in |
|
|
Diameter as Supplied |
0.125 in |
|
|
Core Diameter |
3 in |
Material Characteristics
| Material Characteristics |
Material Number
|
|
|
|
Material
|
Heat-shrink Polyolefin |
|
Material Properties |
Flame-retardant, Heat-shrinkable, Low-smoke, Zero-halogen |
||||
|
Label Properties |
Heat Shrink |
||||
|
Finish |
Matte |
||||
|
Color |
Red |
||||
|
Resistance Properties |
Chemical-resistant, Corrosion-resistant, Humidity-resistant, Self-extinguishing, UV-resistant, Weather-resistant |
||||
|
Shrink Ratio
|
2:1 |
||||
|
Service Temperature Range °F |
-67 °F – 221 °F |
Product Features
| Product Features |

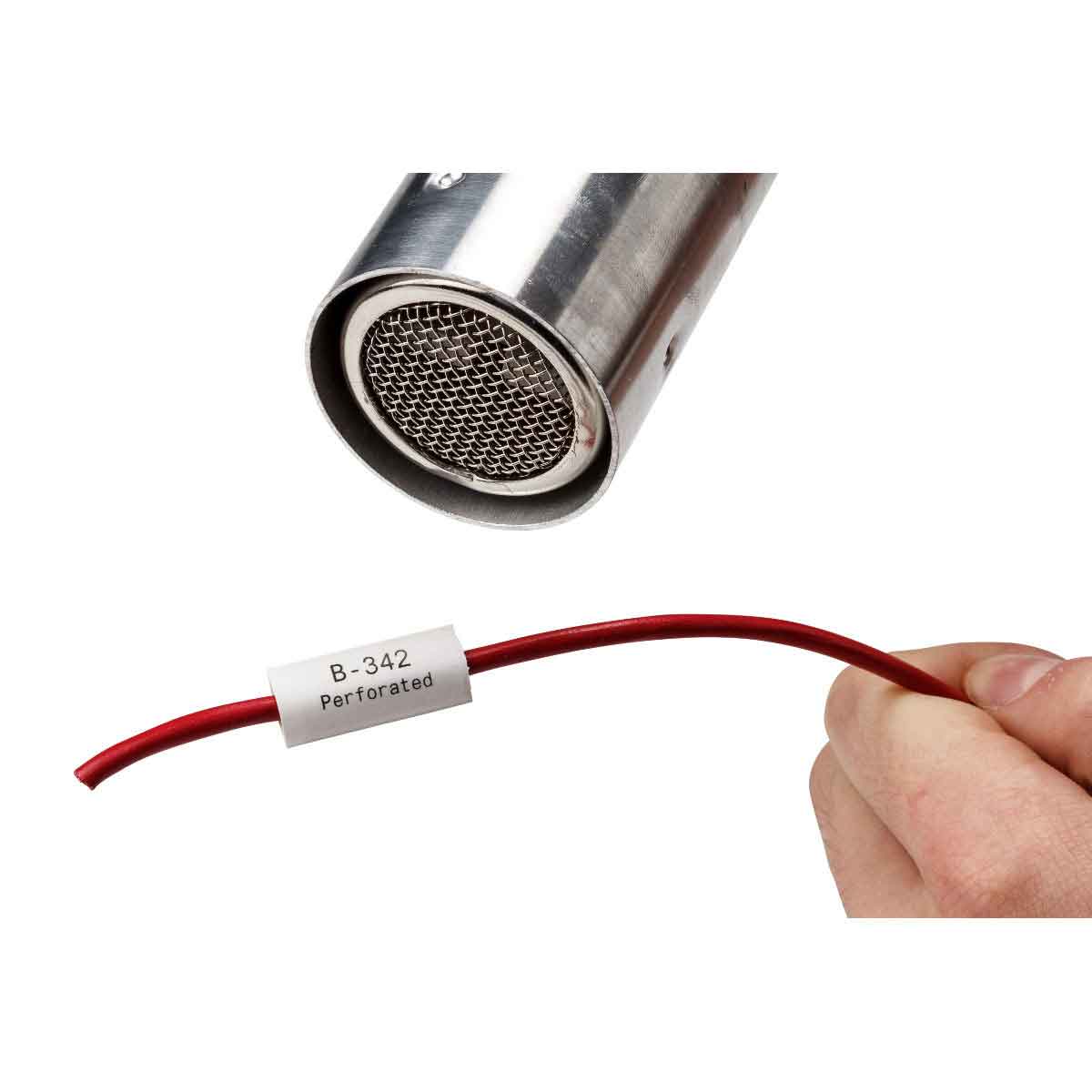

Application
|
Electrical Labeling, Wire and Cable Labeling |
|

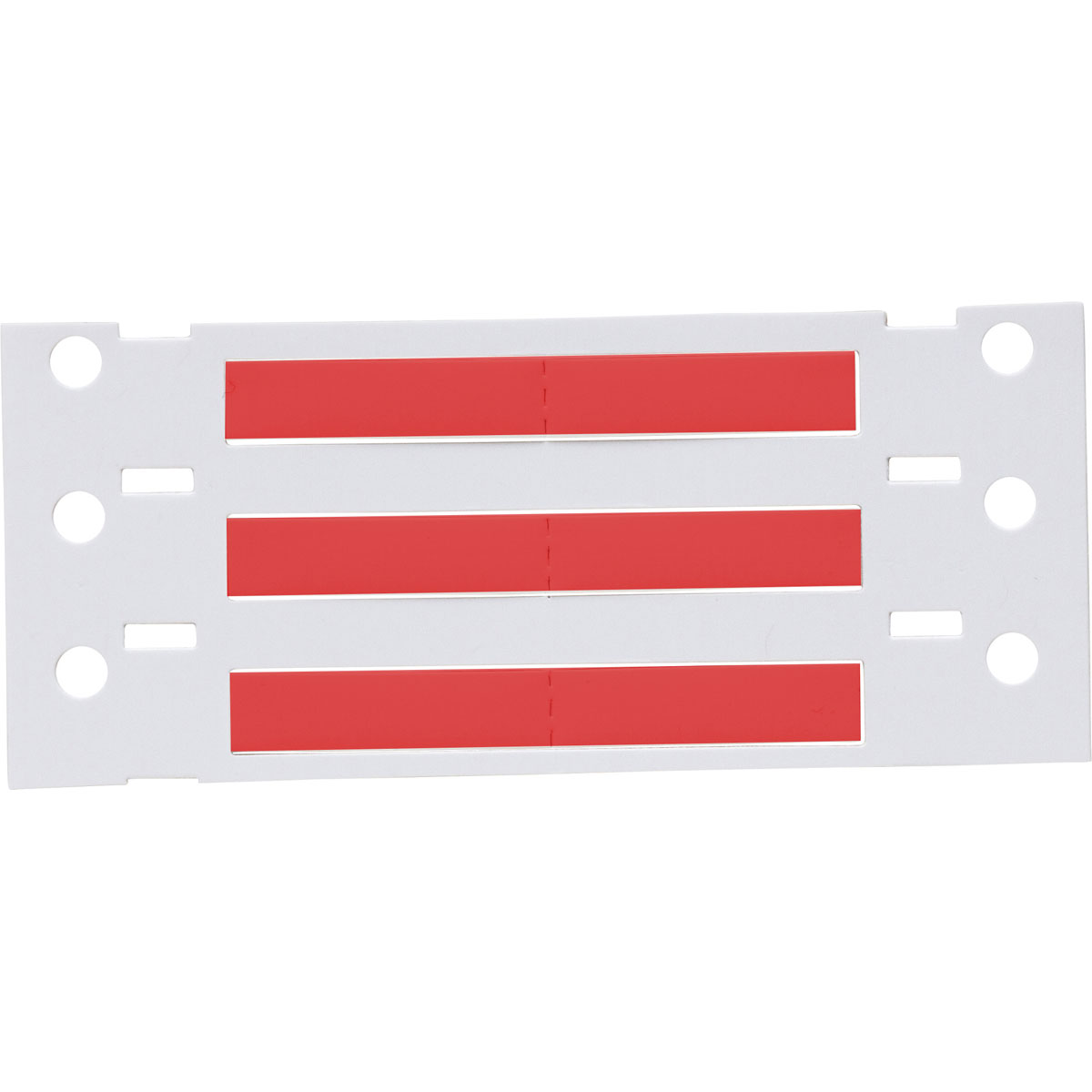

Continuous or Die-cut |
Die-cut |
|
|
Printable Sides |
Double-Side Printable |
|
|
Quantity per Row |
2 |
|
|
Sleeve Slits |
Yes |
Printing Specifications
| Printing Specifications |
Print Technology |
Thermal Transfer |
Compatibility
| Compatibility |
Printer Compatibility |
BBP72, i7100, i7500, PR Plus, THT 3″ Core Printers |
|
Recommended Ribbon
|
i75-R6007, IP-R6007, R6007 |
|
|
Wire Diameter Range |
0.062 in – 0.11 in |
|
|
Wire Gauge Range
|
20 AWG – 16 AWG |
Compliance
| Compliance |
California Prop 65
|
Due to inconclusive data, this product may not ship to California at this time |
|
REACH SVHC Status |
Part does not contain an SVHC |
|
|
REACH Candidate List Date |
15 January 2018 |
|
|
Country of Origin
|
United States of America |
|
|
BS
|
BS 6853 |
|
|
ECCN (Export Commodity Control Number)
|
EAR99 |
|
|
HTS Code (Harmonized Tariff Schedule)
|
8443.99.2550 |
|
|
RoHS Compliance Status |
Compliant with Directive 2011/65/EU and 2015/863 |
|
|
UNSPSC
|
39131502 |
